Drone Tether Power System DJI Matrice 300 200 210 Inspire 2

Uninterruptable Drone Tethered Power System

TPS50-1500W Support DJI Matrice 200, 210, inspire 2
TPS51M-2500W Support DJI Matrice 300 RTK
Directly connect 110V- 220V indoor power or outdoor power generator

This is a tether  transformer. After the tether power station is started, the AC 220V voltage will be converted to 400v high voltage, boosted to 400v, then to air module, and then convert to 45-50v to DJI aircraft.

The drone power supply system is designed for long-endurance space keeping system of DJI Matrice 200 210 300 inspire2 series drone. This system is consist of an onboard power supply and an integrated power supply. The power supply of ground battery is continuously transmitted to drone through the alloy power cable which makes it exceed the battery capacity limit. It makes users to have more time to enjoy playing fun with drone.

The tethered system perfectly solves 3 limitations of multi-rotor industrial drones.
►Flight time: after being connected to the tethered platform, the multi-rotor drone can complete fixed-point high- altitude hovering mission that requre long-term continuous operation in specific scenarios without being limited by baterry capacity.
►Safety: in special areas such as no-fly zones, crowds, flammable and explosive areas, tethered drones can maximize the performance of tarks while minimizing the danger.
►Easy to use: only need to master simple flying skills to easily operate the tethered drone.

Features
►No need to modify the aircraft, just install the air-part module and use it.
►Rain-proof cover design, no fear of bad weather.
►With auto winch system.
►Trolley case design, easy to move.


TPS50M-1500W Tether power station for M200, M210, Inspire 2 Specification

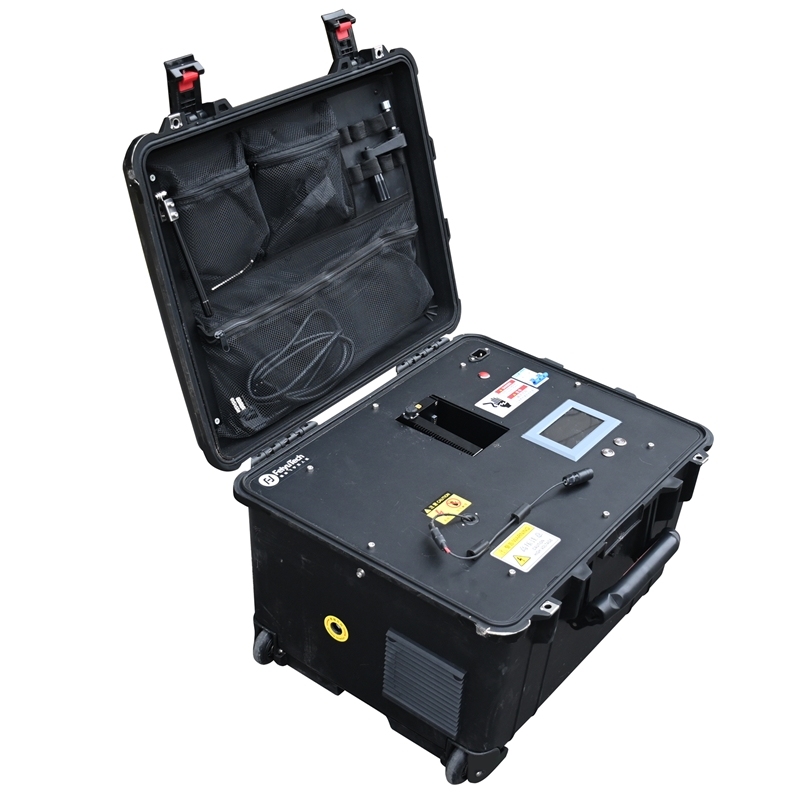

Ground module

Cable length: fly heigh 50m;

Input voltage: AC110-240V;

Output Voltage: DC300-400V;

Maximum output current: 3.5A;

Maximum input current：6.18A (input voltage AC 220V rated load);

Input maximum impulse current：9A (input voltage AC 220V rated load);

Rated Power: 2500W;

Work temperature: -20ºC~+60ºC;

Cable winch: Automatic + Manual;

Material: Solid aviation box;

Dimension: 585mm*390mm*285mm; Weight: 23kg;
Black tether cable weight: 17g/m;

Air module

Rated input voltage: DC 300 - 420 V;

Rated output voltage: DC 24±1.2 V;

Rated maximum output current: >60A;

Rated power: 1500W;

Overcurrent protection: ≥70A;

Overvoltage protection: 420v;

Output short circuit protection;

Overtemperature protection function: 80 ℃;

Shell material: aviation aluminum alloy；

Dimension: 110*90*50mm; Weight: 428g；

TPS51M-2500W Tether system for DJI Matrice 300 RTK

Ground module

Cable length: 51meters, can fly height 50m; 100 meters is optional.

Input voltage: AC110-240V;

Output Voltage: DC300-400V;

Maximum output current：6.5A;

Maximum input current：8.75A (input voltage AC 220V rated load);

Input maximum impulse current：9A (input voltage AC 220V rated load);

Rated Power: 3000W;

Work temperature: -20ºC~+55ºC;

Cable winch: Automatic + Manual;

Material: Solid aviation box;

Dimension: 585mm*390mm*285mm; Weight: 23kg;
Black tether cable weight: 17g/m;

Air module

Rated input voltage: DC 300 - 420 V;

Rated output voltage: DC 45-50V;

Rated maximum output current: >50A;

Rated power: 2500W;

Overcurrent protection: ≥62A;

Overvoltage protection: 420v;

Output short circuit protection;

Overtemperature protection function: 80 ℃;

Shell material: aviation aluminum alloy;

Product size: 145mm*91mm*93mm; Weight: 500 ± 10g;

L640W Tethered lighting system
Adapted to DJI M300RTK drone

Function Description

The L640W light is a high-power illuminating lamp specially equipped for DJI M300 tethering equipment. It is powered by the tethering equipment and can continuously illuminate for more than 8 hours, providing convenient lighting for night work.

Product Features

1. Easy installation, plug and use;

2. Automatic temperature control detection with constant light on when starting up;

3. Lightweight, high lumen, and high power.

Product specifications
