TPS25M-500W
TPS60M-500W
Directly connect 220V indoor power or outdoor power generator or spare battery.

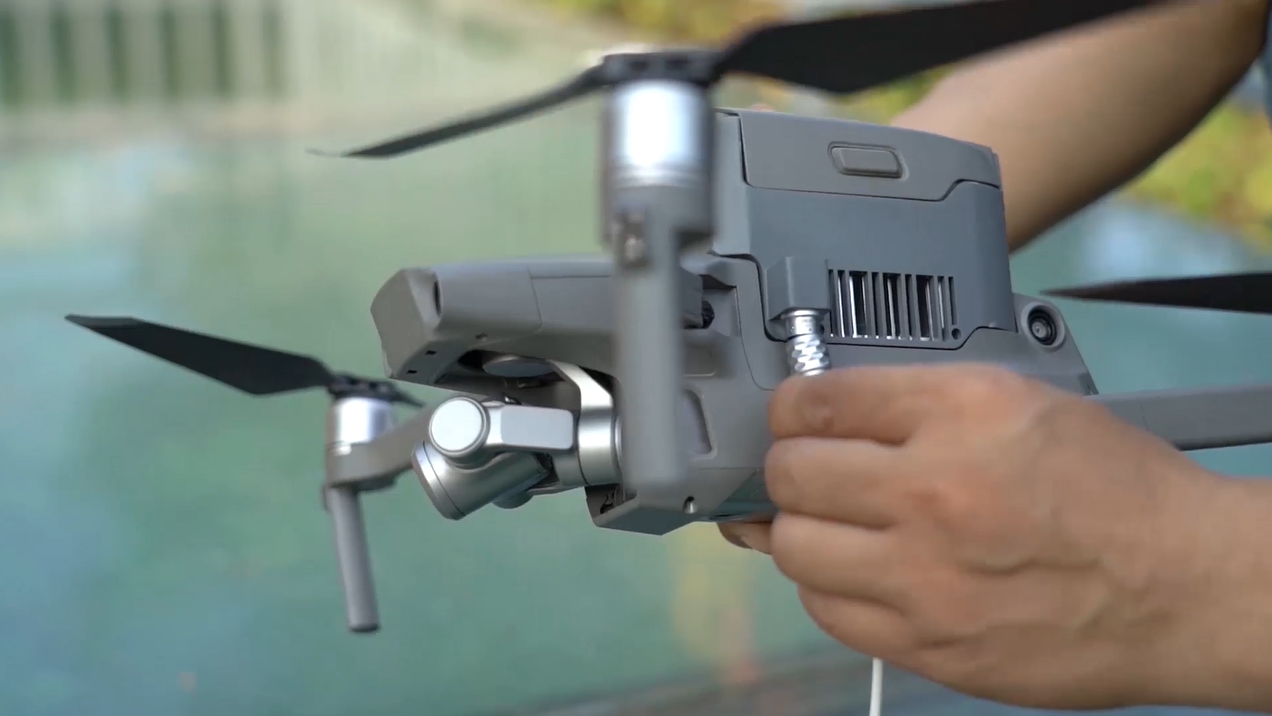

DJI Mavic 2 battery module
The drone power supply system is designed for long-endurance space keeping system of DJI Mavic series drone. This system is consist of an onboard power supply and an integrated power supply. The power supply of ground battery is continuously transmitted to drone through the alloy power cable which makes it exceed the battery capacity limit. It makes users to have more time to enjoy playing fun with drone.
Features
►It is totally compatible all Mavic series drone
►Plug and play, no need to modify the drone. Just plug in the battery module. Fully adapt to the DJI app system, without any modification to the software and hardware.
►Small and Portable: small and compact, with a built-in auto winch system.
►Support hot swapping: the power supply can be replaced without landing the drone.
►Easy operation, Intelligent retractable line control
►One-click setting to take off/hovering/landing
►It is equipped with a pair of 16.5V output interfaces which is used for third party load such as light or megaphone. It is applied to blank monitoring, live broadcast, emergency communication and high-altitude lighting field and etc.
Specification

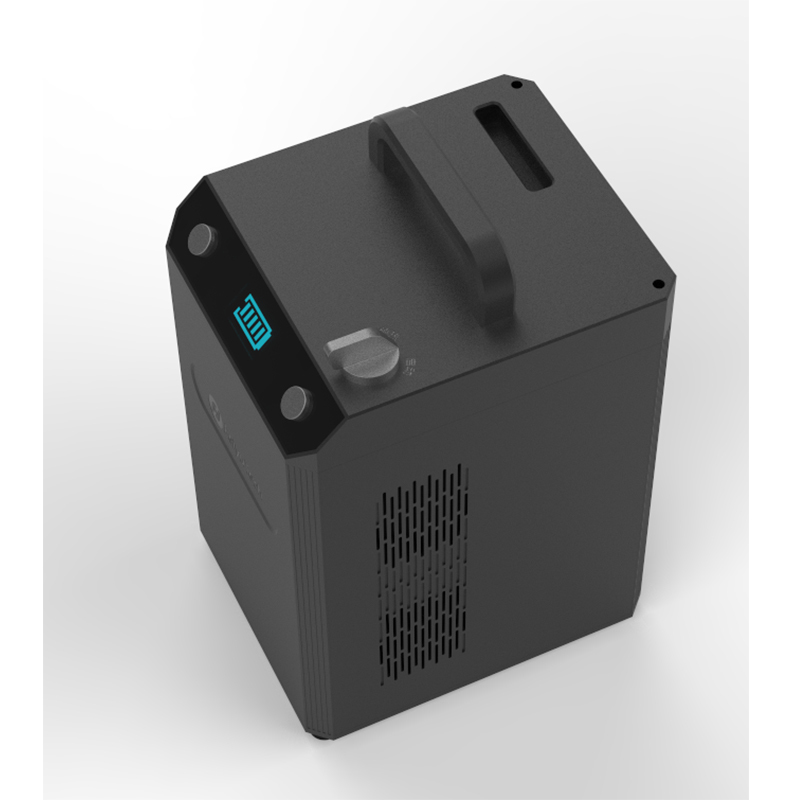

Ground module
Cable length: 25meters /60meters;
Input voltage: DC42V-50.4V or AC 220V;
Output Voltage: DC300-400V;
Output Power: 500W;
Cable collection type: Automatic + Manua;
Power input interface: AS150 and XT6；
Work temperature: -20ºC~+55ºC;
Shell Material: Oxidized Aluminum Alloy;
Size: 160mm*180mm*277mm; Weight: 4.1 kg;
25 meters white tether cable weight: 9.3g/m; 60 meters black tether cable weight: 5.5g/m;
Air module:
Input Voltage: DC300-400V;
Output Voltage: DC16-17.5V;
Rated Power: 500W;
Plug Type: Aviation Plug;
Efficiency: 93%;
Shell Material: Aviation Aluminum Alloy;
Size: 109*92*58mm;Weight: 229g Aviation Aluminum Alloy /175g plastic;
Packing
