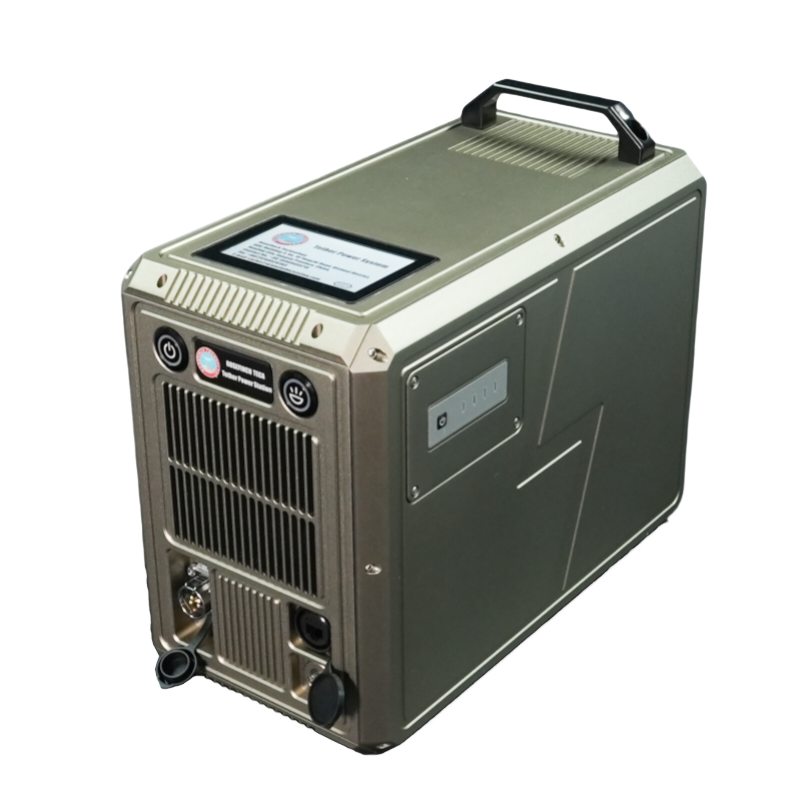

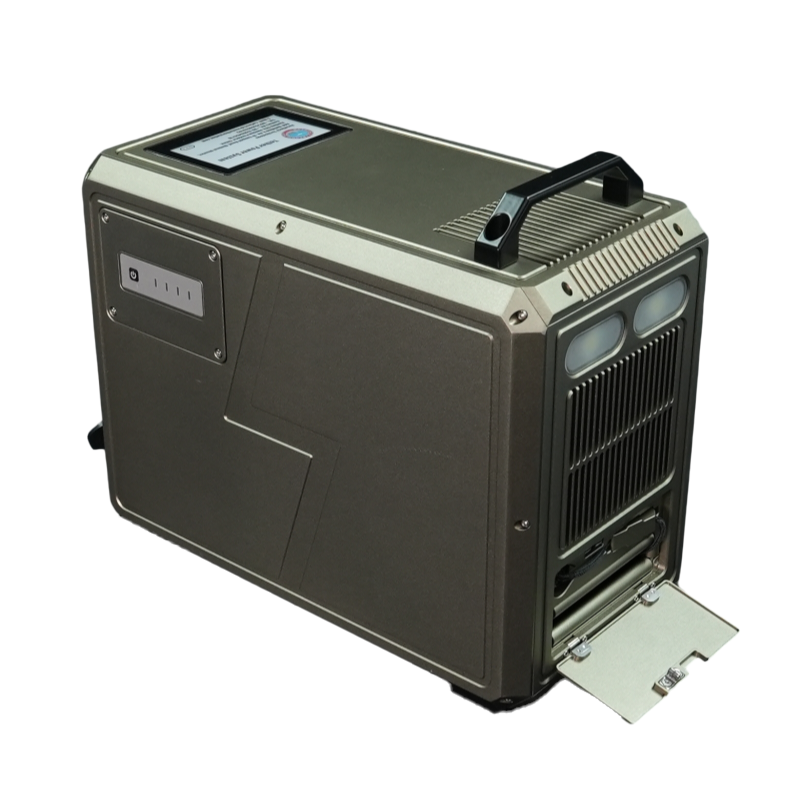

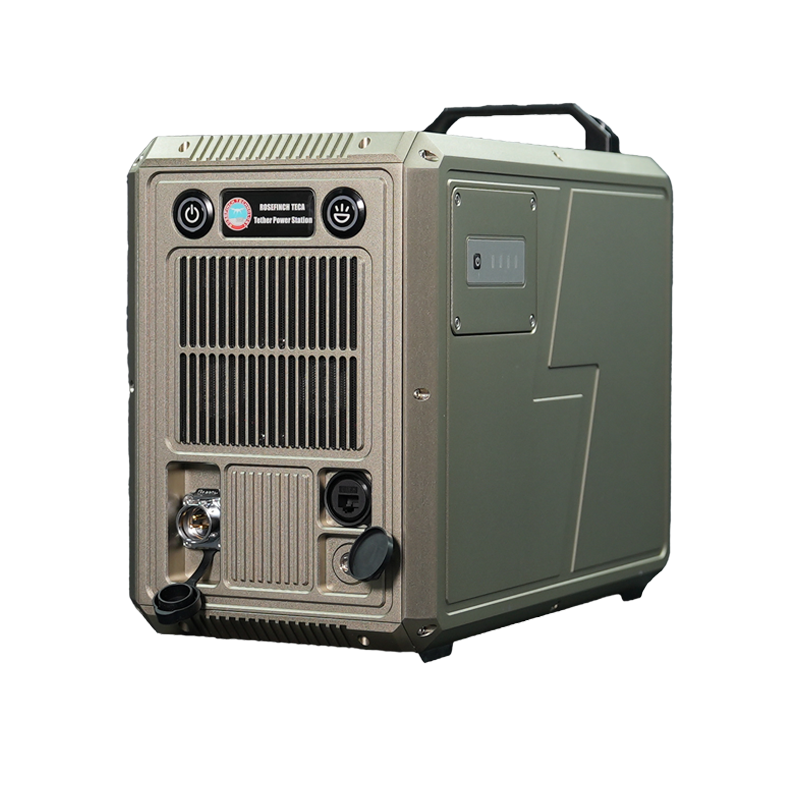

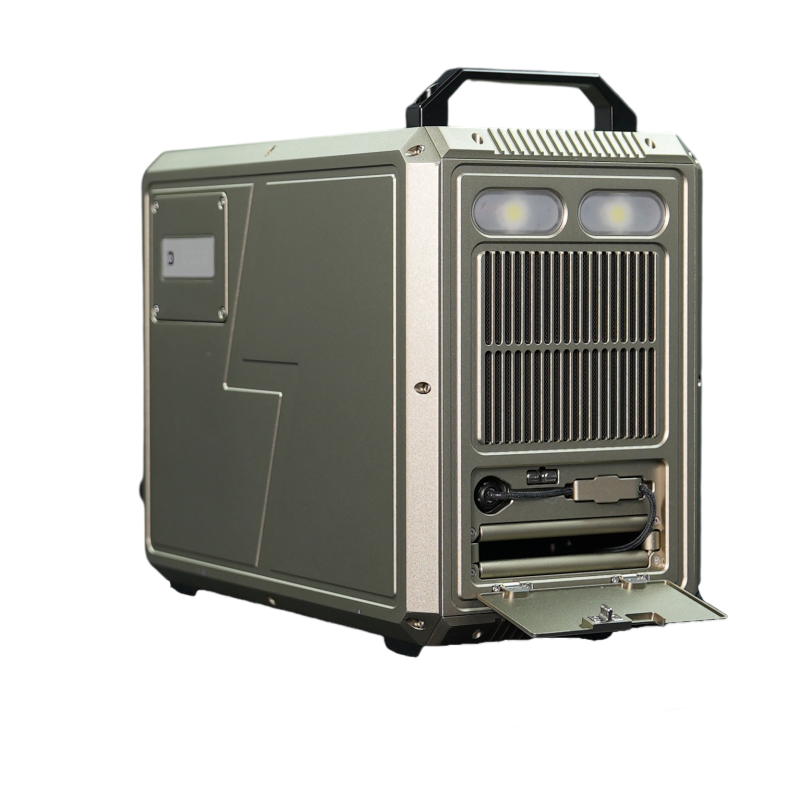

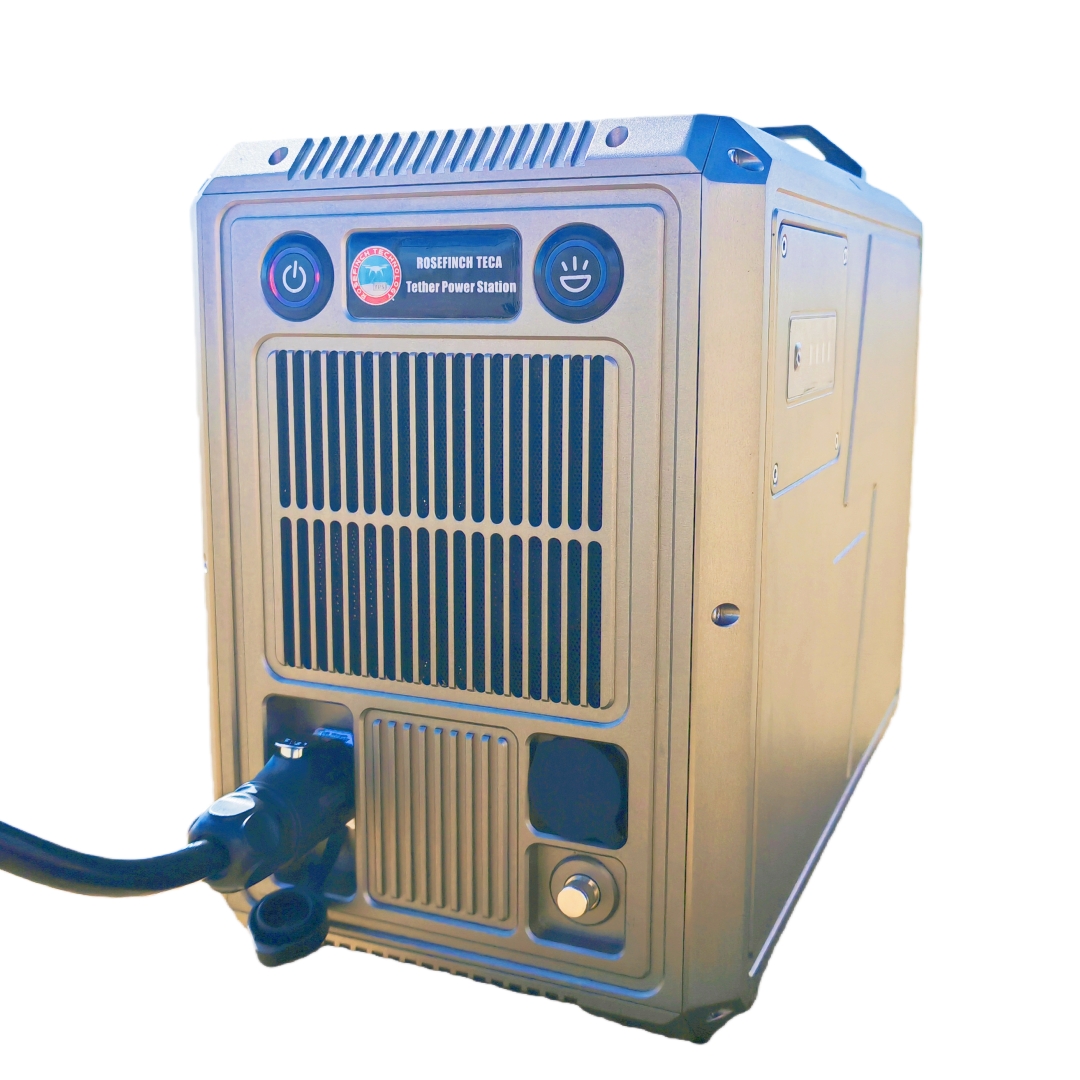

New MTOW10KG 2KW 110M Tethered Station Ver. 4.0

Description Specifications Review

Description

New MTOW10KG 2KW 110M Tethered Station With Automated Winch System

The main function of this product is to provide safe and reliable long-endurance flight power for multi-rotor UAV up to 12 hours.

This product is a highly integrated tethered power supply platform designed for unmanned aerial vehicles with a takeoff weight of 10Kg.

It supports fiber optic interface expansion, enabling the connection of self-organizing network devices and high-speed data transmission. Suitable for long-endurence operations, such as personnel and vehicle monitoring for Drone Enhanced Live Event Monitoring , emergency lighting for search and rescue, mobile communication base stations, and other key scenarios, providing stable and efficient power and communication support.

It focuses on high reliability, intelligent protection, and flexible expansion,providing a 24h/7D, multi scenario tethered power supply solution for unmanned aerial vehicles in the industry.

This product can be used as a tool to enable users to concentrate on flight operations without additional operations during the whole takeoff and landing flight operations.

1.Adapted to drones

1). Support flight altitude: ≥ 50m (equipped with 55m professional tethered cable, including 5m redundant length).

2). Support flight duration: ≥ 24 hours (actual endurance is affected by the structural strength and electrical system durability of the drone).

2.Functional characteristics

2.1 Lightweight and Portable, Fast deployment

Adopting a lightweight design, it is compact in size, lighter in weight, and can be easily carried by one person. It supports rapid deployment in the field and meets the needs of mobile missions.

2.2 Multiple Protections, Safe and Reliable

Electrical isolation: design with complete separation of AC high voltage and DC low voltage electricity.

Equipped with multiple protection mechanisms such as input overvoltage/undervoltage, output overcurrent/short circuit, etc., automatic fault detection and recovery ensure stable system operation.

Ultra High Voltage Withstand Standard ≥ 3000VDC;

2.3 Low Voltage Button to Start AC Input, No Need AC Air Switches, Improve The Safety.

Adopting low-voltage soft starting mode, replacing traditional circuit breaker starting, with ultra-high waterproof rating far superior than air switches, further improving the safety of isolated AC contact use.

2.4 Touch Screen Display 4.3-inch:

Real time display: electrical parameters such as real time power/voltage/current/temperature/cable length/power consumption/running time.

Operating data curve chart: Voltage/current/temperature curve chart. Fault record. Logs storage and read.

2.5 Stable Power Supply and Long-lasting Battery Life

The onboard module provides constant voltage output, that avoids ineffective charging and discharging losses, protect battery lifespan, and always maintain a fully charged standby state during operation.

2.6 Intelligent Winch Automated Control System

Automatically follow the takeoff and landing of the drone to retract cables.

Fully automated operation process, unmanned aerial vehicle takeoff and landing do not require manual operation throughout the entire process, reducing operational barriers and improving task efficiency.

2.7 Worry-Free Power Cut Off, Intelligent Cable Retraction

Built in backup power supply, it can automatically switch to backup power mode in case of sudden power outage, completing emergency wire retraction and avoiding the risk of cable entanglement.

2.8 Intelligent Communication Management System

Wired communication between GCS and ground power module: USB Type-C high-speed transmission.

Wireless communication between GCS and ground power module: Bluetooth 5.0 low-power connection.

Optic fiber wireless communication between GCS and drone: Optic fiber. Achieve fast data transmission.

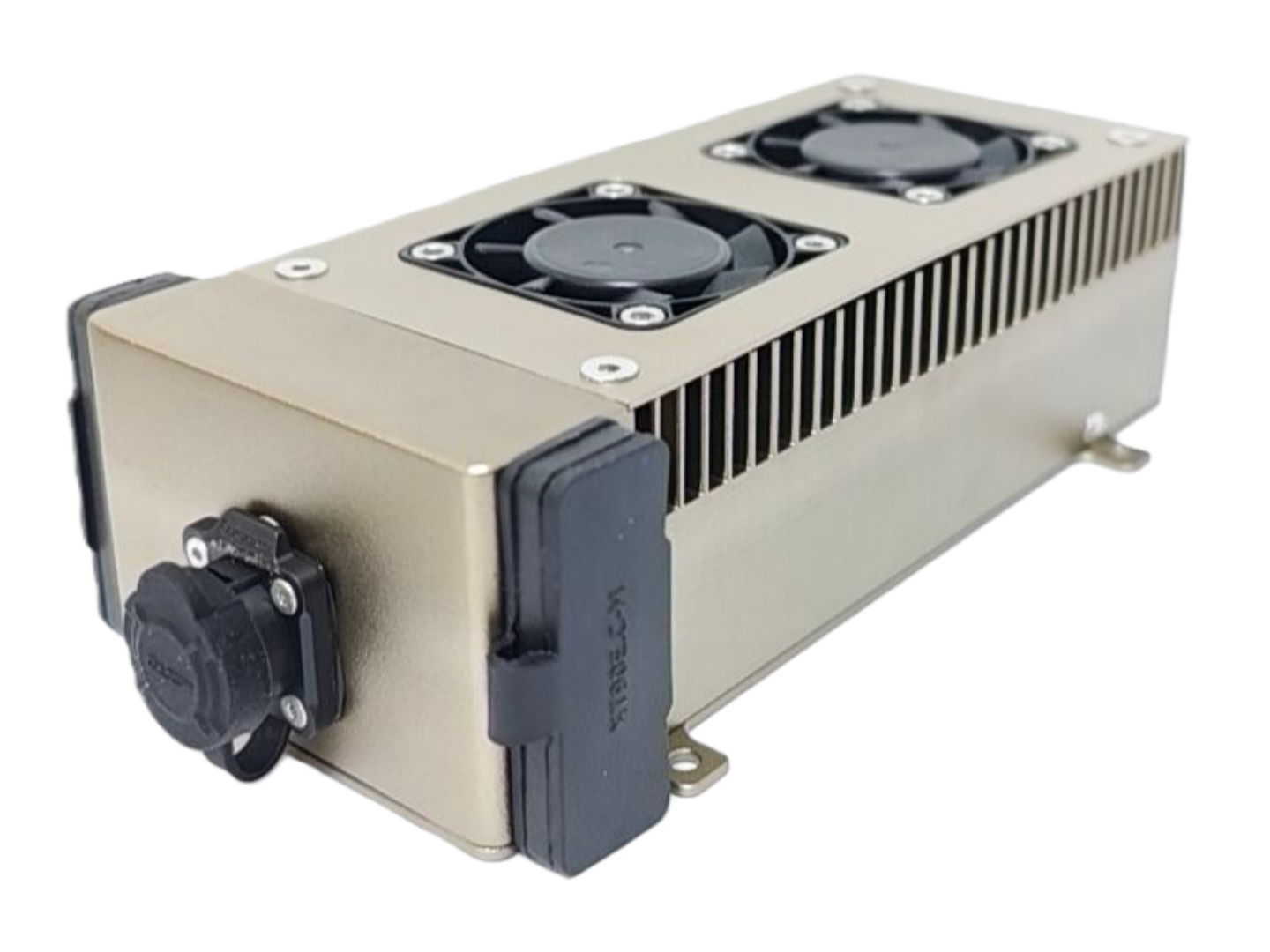

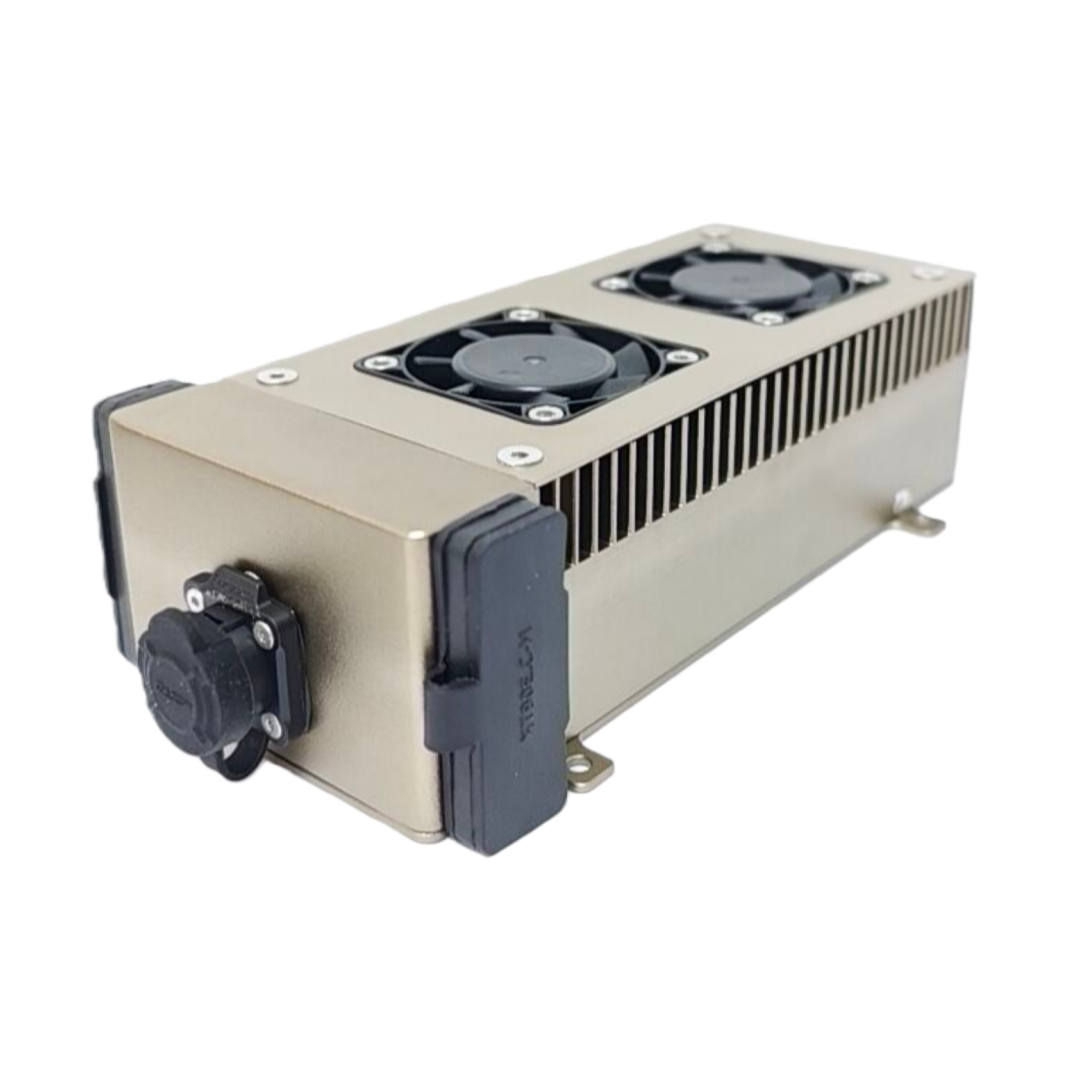

3. Air module power supply

4. Ground module

Specifications

Items		Technical parameters
Model		TPS55M-2KW Ver. 4.0
Cable length		55M
Ambient temperature		-20～45℃ (working)，-40～65℃ (storage)
Relative humidity		10～80%RH (working)，5～90%RH (storage)
Altitude		≤3000m
Ground power module	Input voltage	190-240Vac wide range input, single-phase 220Vac，frequency 50/60Hz
	Output voltage	700～750Vdc adjustable
	Output power	≤3500W (Rated Long-Time Output)
	Take-up and payoff speed	0～2m/s, adjustable
	take-up and payoff tension	0～15N, adjustable
	Interface	Input: Lingke LP20-3P; Output: Lingke LP12 aviation plug,Type-C wired communication, fiber optic FC port (optional)
	Button and switch	AC switch, front lighting switch, backup battery switch
	Protection level	IPx4 (Level 4 Waterproof grade actual tested)
	Backup battery for retract cable	Nominal 14.4V, fully charged 16.8V, 3000mAh 1087625.2mm, 346±6g
	Size	D360W186H268 ±0.5mm, excluding foot pads and external accessories
	Weight	12.5 ±0.2kg, including 100m cable
Cable	Material	Alloy lightweight high-temperature resistant aviation wire, composite fluoroplastic insulation layer, high modulus tensile aviation grade fiber woven layer
	Fiber optic communication	The tethered cable is an optoelectronic composite cable containing tightly wrapped single-mode fiber with optional fiber optic communication.
	Current	5A rated
	DC resistance	6.8±0.2Ω, 100m@20℃loop
	Resistance Tensile strength	≤100kg, resistant to repeated reaction and release times≤1000
	Insulation strength	≤3000Vdc, 1min, no breakdown
	Cable length	Standard equipment 55m;
	Outer diameter	3.5±0.1mm
	Weight	13.0±1g/m
Air module	Input voltage	580~810Vdc wide range input
	Output voltage	25 ± 0.3Vdc or 50 ± 0.5Vdc, constant voltage output, supporting voltage customization
	Output power	2000W (rated long-term output)
	Protection function	Input overvoltage and undervoltage protection Output overvoltage, overcurrent, short circuit, and over temperature protection
	Isolation voltage	3000V (Vin-Vout), 1min, leakage current ≤ 5mA, no breakdown, flashover, or corona phenomenon
	Installation method	Reserved installation holes, fixed with screws
	Heat dissipation method	External fan for active cooling, reserved air ducts for forced air cooling
	Interface	Input LP12-3P-F1, output XT90-M2
	Protection level	IP54 actual tested
	Size	145 × 60 × 42 ± 0.5mm, excluding mounting lugs
	Weight	510 ± 20g, excluding external connectors
Packing	Size	550×450×450±5mm (Aviation Hard Size)
Packing	Weight	22.0±0.5kg
