New DJI M350 110M Tethered Station Ver. 4.0

Description Specifications Review

Description

DJI M350 New Tethered Station With Automated Winch System

The main function of this product is to provide safe and reliable long-endurance flight power for DJI Matrice 350 RTK UAV up to 24 hours.

This product is a highly integrated tethered power supply platform designed for unmanned aerial vehicles with a takeoff weight of 10Kg.
It can be equiped with FL08 floodlights and supports fiber optic interface expansion, enabling the connection of self-organizing network devices and high-speed data transmission.
Suitable for long-endurence operations, such as personnel and vehicle monitoring for Drone Enhanced Live Event Monitoring , emergency lighting for search and rescue, mobile communication base stations, and other key scenarios, providing stable and efficient power and communication support.
It focuses on high reliability, intelligent protection, and flexible expansion,providing a 24h/7D, multi scenario tethered power supply solution for unmanned aerial vehicles in the industry.

This product can be used as a tool to enable users to concentrate on flight operations without additional operations during the whole takeoff and landing flight operations.

1.Adapted to DJI Matrice 350 RTK

1). Support flight altitude: ≥ 100m (equipped with 110m professional tethered cable, including 10m redundant length).

2). Support flight duration: ≥ 24 hours (actual endurance is affected by the structural strength and electrical system durability of the drone).

3). Optional lighting: 800W.

2.Functional characteristics

2.1 Lightweight and Portable, Fast deployment

Adopting a lightweight design, it is compact in size, lighter in weight, and can be easily carried by one person. It supports rapid deployment in the field and meets the needs of mobile missions.

2.2 Multiple Protections, Safe and Reliable

Electrical isolation: design with complete separation of AC high voltage and DC low voltage electricity.

Equipped with multiple protection mechanisms such as input overvoltage/undervoltage, output overcurrent/short circuit, etc., automatic fault detection and recovery ensure stable system operation.

Ultra High Voltage Withstand Standard ≥ 3000VDC;

2.3 Low Voltage Button to Start AC Input, No Need AC Air Switches, Improve The Safety.

Adopting low-voltage soft starting mode, replacing traditional circuit breaker starting, with ultra-high waterproof rating far superior than air switches, further improving the safety of isolated AC contact use.

2.4 Touch Screen Display 4.3-inch:

Real time display: electrical parameters such as real time power/voltage/current/temperature/cable length/power consumption/running time.

Operating data curve chart: Voltage/current/temperature curve chart. Fault record. Logs storage and read.

2.5 Stable Power Supply and Long-lasting Battery Life

The onboard module provides constant voltage output, that avoids ineffective charging and discharging losses, protect battery lifespan, and always maintain a fully charged standby state during operation.

2.6 Intelligent Winch Automated Control System

Automatically follow the takeoff and landing of the drone to retract cables.

Fully automated operation process, unmanned aerial vehicle takeoff and landing do not require manual operation throughout the entire process, reducing operational barriers and improving task efficiency.

2.7 Worry-Free Power Cut Off, Intelligent Cable Retraction

Built in backup power supply, it can automatically switch to backup power mode in case of sudden power outage, completing emergency wire retraction and avoiding the risk of cable entanglement.

2.8 Intelligent Communication Management System

Wired communication between GCS and ground power module: USB Type-C high-speed transmission.

Wireless communication between GCS and ground power module: Bluetooth 5.0 low-power connection.

Optic fiber wireless communication between GCS and drone: Optic fiber. Achieve fast data transmission.

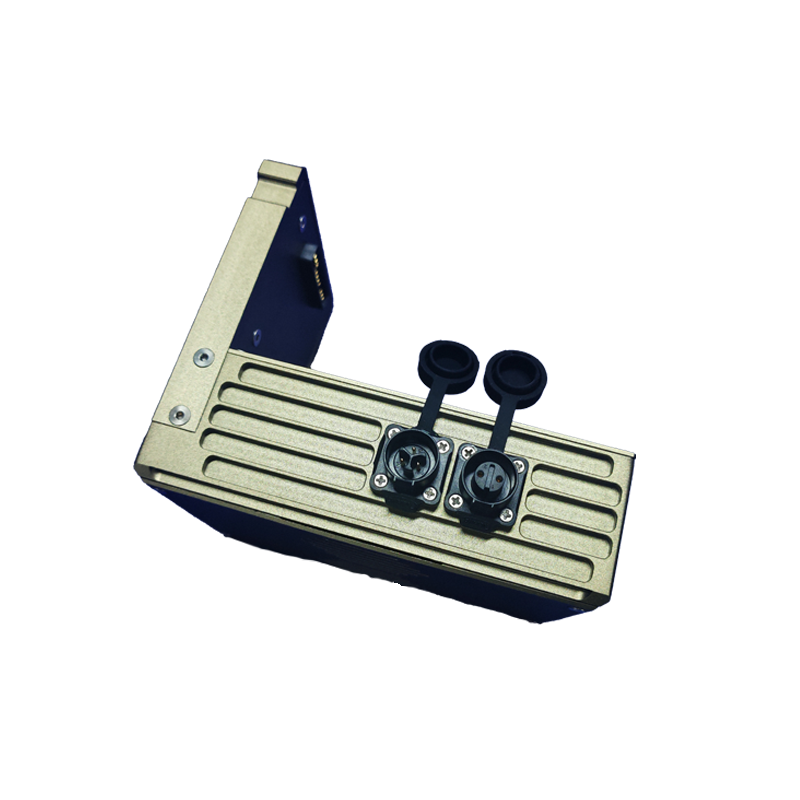

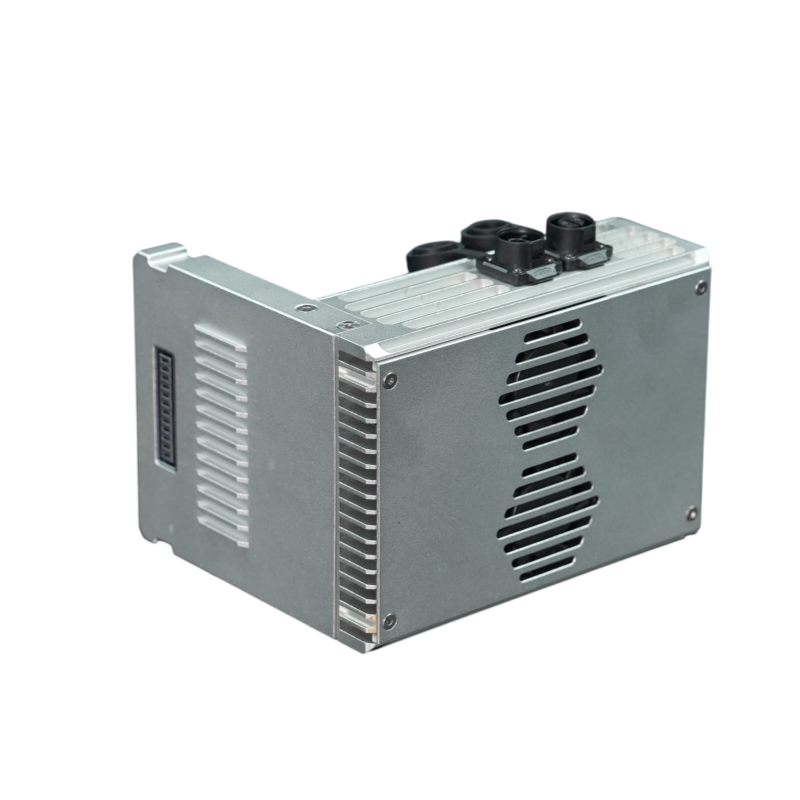

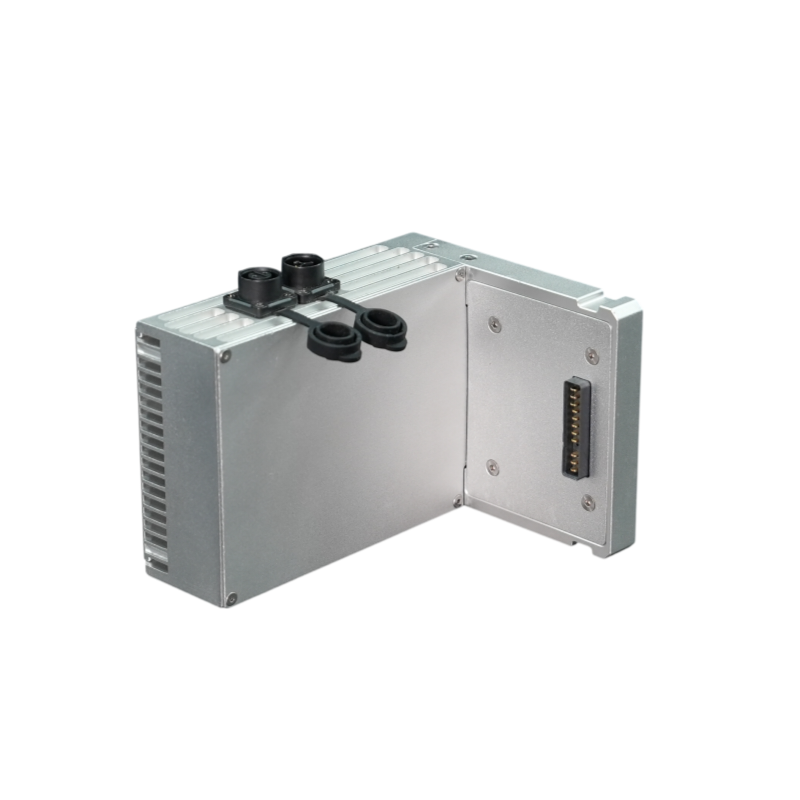

3. Air module power supply

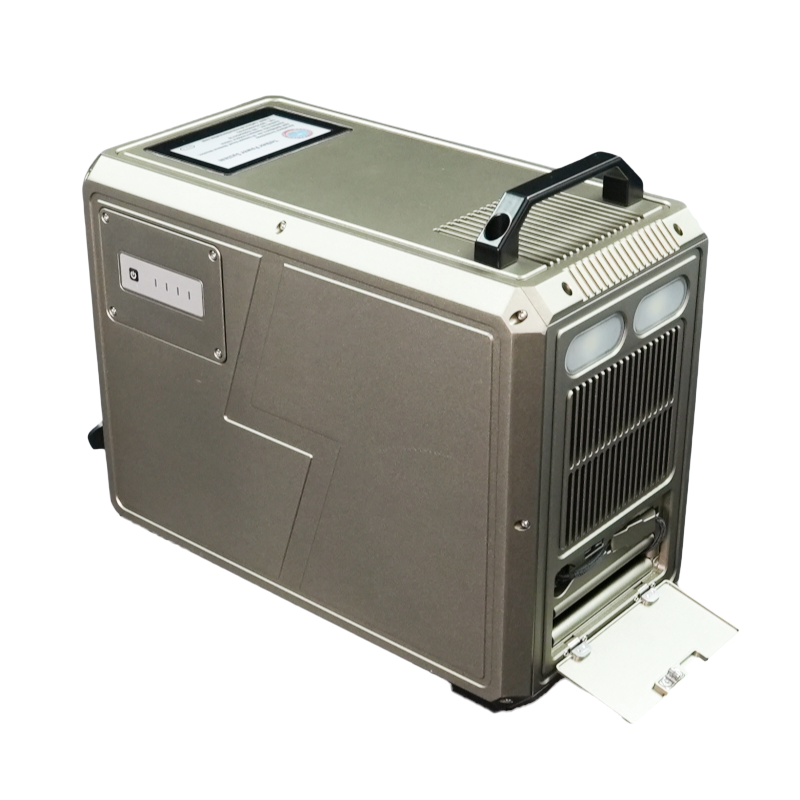

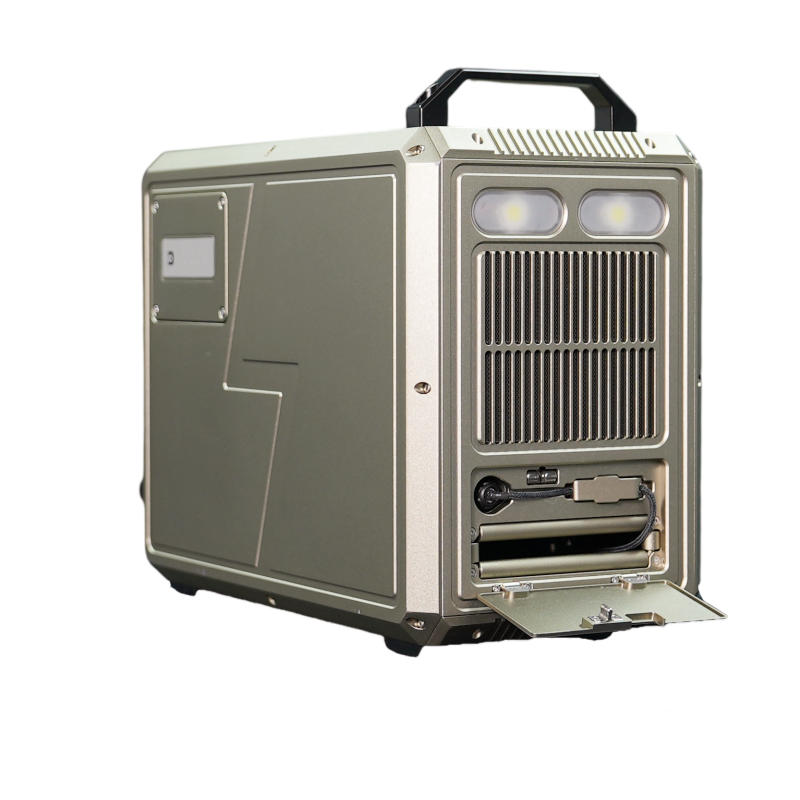

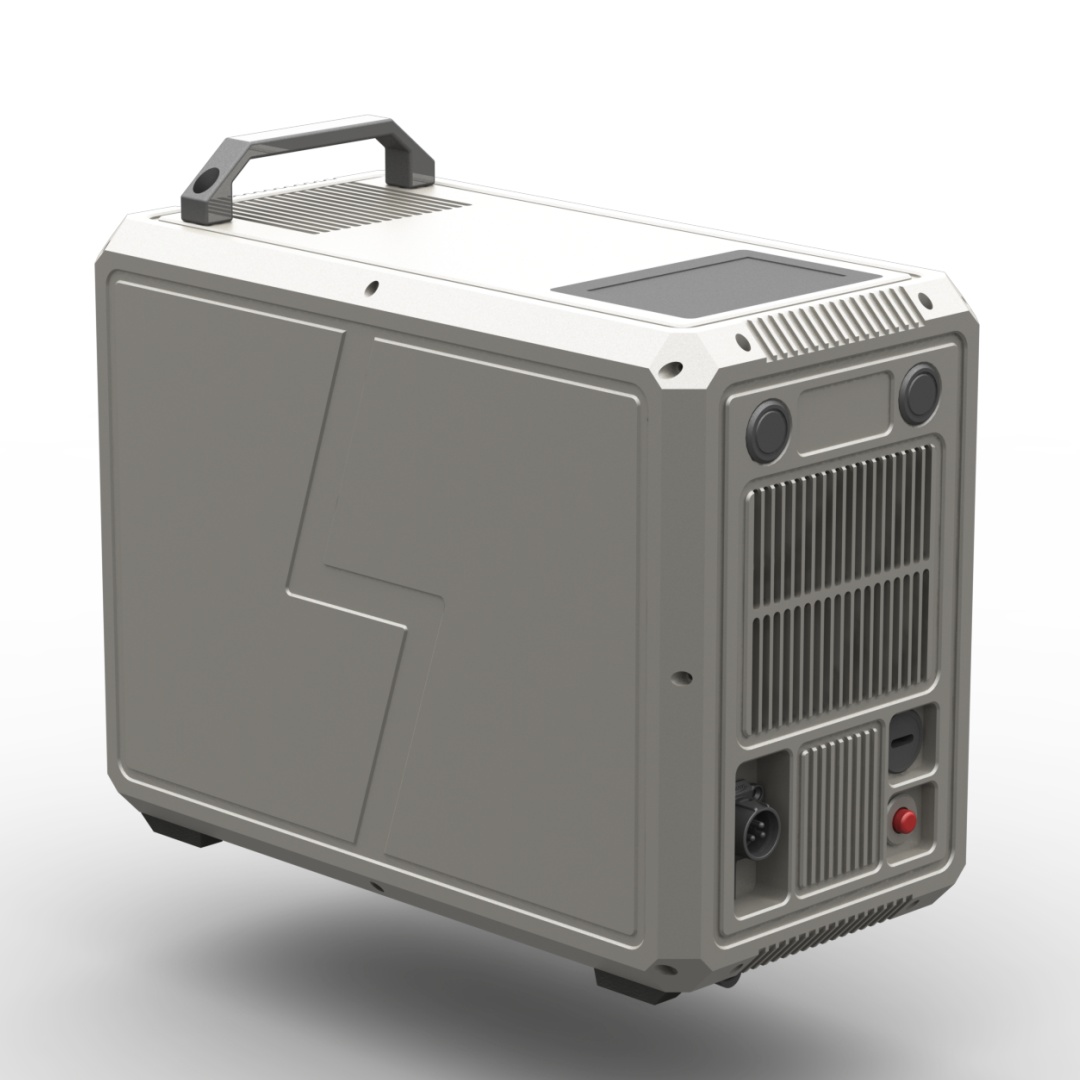

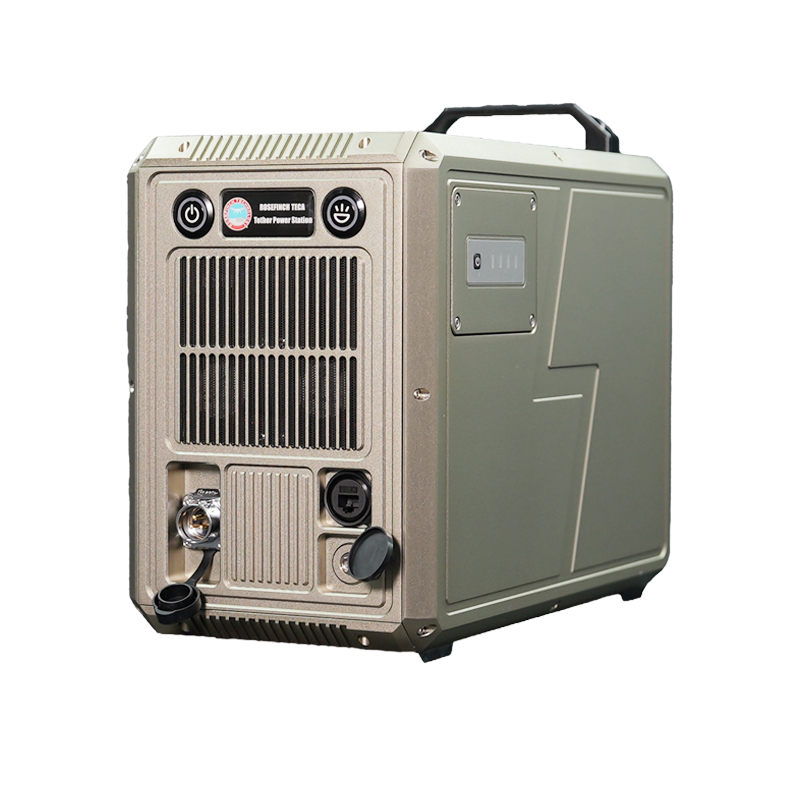

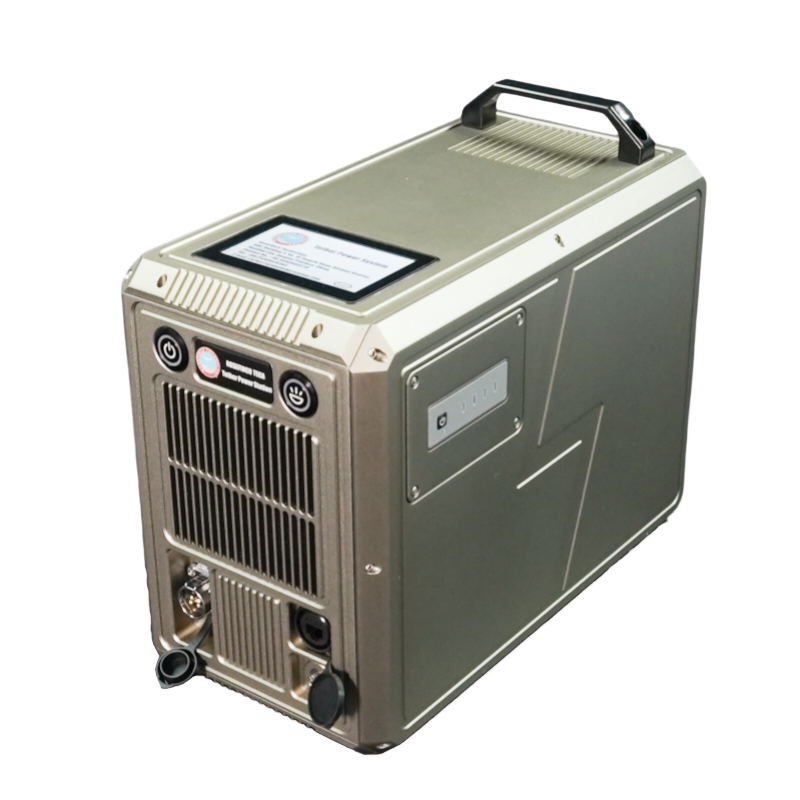

4. Ground module

Specifications

Items		Technical parameters
Model		TPS55M-M350 Ver. 4.0	TPS110M-M350 Ver. 4.0
Cable length		55M	110M
Ambient temperature		-20～45℃ (working)，-40～65℃ (storage)
Relative humidity		10～80%RH (working)，5～90%RH (storage)
Altitude		≤3000m
Ground power module	Input voltage	190-240Vac wide range input, single-phase 220Vac，frequency 50/60Hz
	Output voltage	700～750Vdc adjustable
	Output power	≤3500W (Rated Long-Time Output)
	Take-up and payoff speed	0～2m/s, adjustable
	take-up and payoff tension	0～15N, adjustable
	Interface	Input: Lingke LP20-3P; Output: Lingke LP12 aviation plug,Type-C wired communication
	Button and switch	AC switch, front lighting switch, backup battery switch
	Protection level	IPx4 (Level 4 Waterproof grade)
	Backup battery for retract cable	Nominal 14.4V, fully charged 16.8V, 3000mAh 1087625.2mm, 346±6g
	Size	D360W186H268 ±0.5mm, excluding foot pads and external accessories
	Weight	12.5 ±0.2kg, including 100m cable
Cable	Material	Alloy lightweight high-temperature resistant aviation wire, composite fluoroplastic insulation layer, high modulus tensile aviation grade fiber woven layer
	Current	5A rated
	DC resistance	8.3±0.2Ω, 100m@20℃loop
	Resistance Tensile strength	≤100kg, resistant to repeated reaction and release times≤1000
	Insulation strength	≤3000Vdc, 1min, no breakdown
	Cable length	Standard equipment 110m, optional 55m;
	Outer diameter	2.5±0.1mm
	Weight	12.0±1g/m
Air module	Input voltage	580~810Vdc wide range input
	Output voltage	50.5 ± 0.5Vdc, constant voltage output
	Output power	2000W (rated long-term output)
	Protection function	Input overvoltage and undervoltage protection Output overvoltage, overcurrent, short circuit, and over temperature protection
	Isolation voltage	3000V (Vin-Vout), 1min, leakage current ≤ 5mA, no breakdown, flashover, or corona phenomenon
	Installation method	Quick dismantling track mount beside the battery
	Heat dissipation method	External fan for active cooling, reserved air ducts for forced air cooling
	Interface	Input LP12-3P, output LP12 for lighting
	Protection level	IP54
	Size	Maximum outline size: 13011092 ±0.5mm, excluding sliders and connectors
	Weight	756 ± 10g, excluding sliders, external connectors, and wires
Lighting	Input voltage	750V
	Lamp group power	400±30W*2 pcs
	Luminous Flux	100000Lm
	Center Illuminance	100Lux@30m
	Installation method	Quick lock buckle
	Outline dimension	3604625mm (individual)
	Weight of lamp assembly	280g*2 pcs
Packing	Size	720×570×380±5mm (Plastic Hard Size)
	Weight	22.0±0.5kg	23.0±0.5kg
