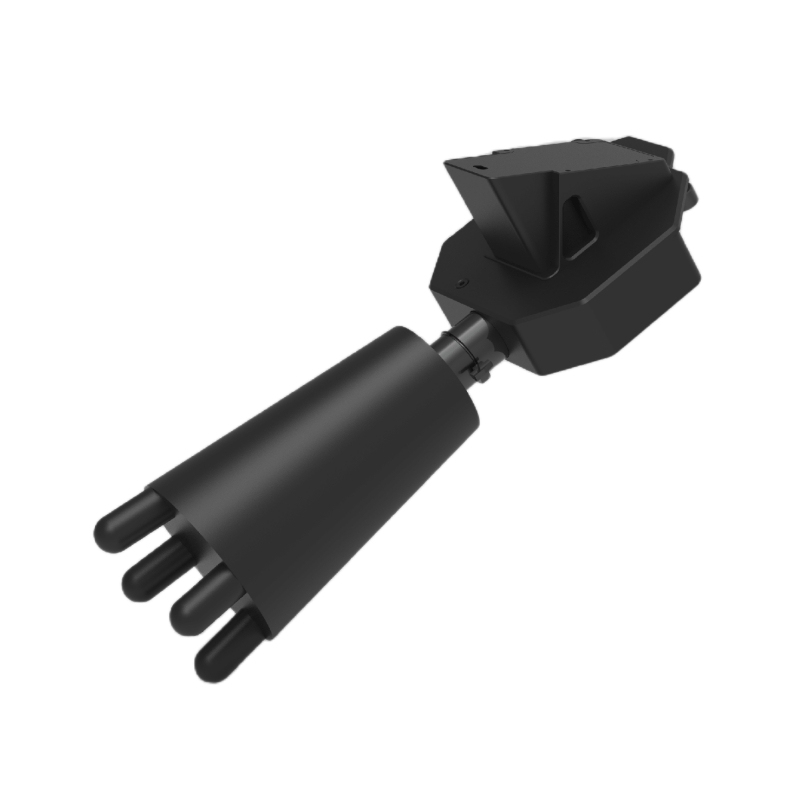

DJI Drone M350 M400 Capture Net Transmitter
ANG100P is a capture net gun carried by unmanned aerial vehicles, which can shoot a 9m netin the air to capture fixed or moving targets, with an effective range of 15m. Seamless connection between PHUB and drone, with control distance consistent with drone remote control. it can play an important role in the capturetasks of the public security and armed police, as well as in the rescue of wildlife.
A video capture module is optional.
1. Overview and Characteristics
Stable installation: Using a metal mounting bracket that can withstand the recoil after launch, paired with the drone's built-in FPV camera for aiming purposes;
Special accessories: matched with multiple sets of 3m * 3m catching nets, which can be recycled several times;
Security: One-click lock for increased usability and installation to prevent accidental injury;
2. Application
Application scenario:
Law enforcement scene, public security control, police deterrence, rescue of wildlife.
3. Equipment parameters
Model: ANG100P;
Size: 290mm * 200mm * 120mm;
Weight: 1500g;
Interface: SKYPORT V2/S.PORT;
Control method: Pilot 2;
System power: 15W;
Working temperature: -20 ° to 60 °;
Number of channels: 1
Control distance: consistent with the communication distance of the drone;
Protection device: independent unlocking button;
Launch angle: 30 degrees downward;
Installation method: belly installation;
P HUB: Support;
Field of fire: 15m;
Net area: 9 m2;
